NEW IDEA 5209 & 5212 Series

Oliver/White Home

Drive

Gearbox Assembly

Gearbox Assembly

5200 Series Home

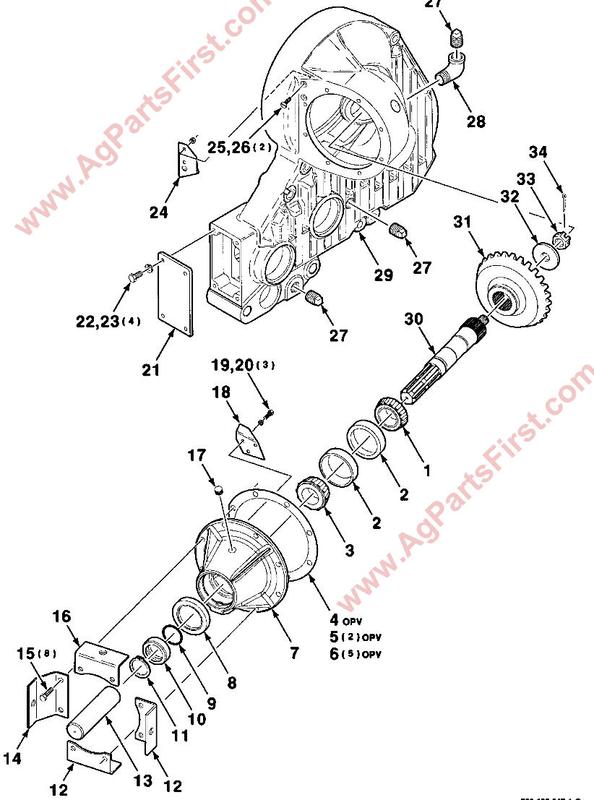

#1 74255820 Bearing Cone

#2 208285M1 Bearing Cup

#3 70539114 Bearing Cone

#4 526518 Shim .005"

#5 526519 Shim .007

#6 526520 Shim .020

#9 W941649 O-ring

#10 527830 Collar

#11 8052086 External Snap Ring

#13 526748 Dust Cap

#17 72160070 Breather Plug

#18 526528 Oil Deflector

#24 527182 Oil Deflector

#27 70905262 Plug

#30 528376 Input Shaft (540 RPM)

#30 528568 Input Shaft (1000 RPM)

#31 527825 27T Bevel Gear (540 RPM)

#31 527826 20T Bevel Gear (1000 RPM)

#32 700717623 Washer

#33 70918787 Slotted Hex Nut

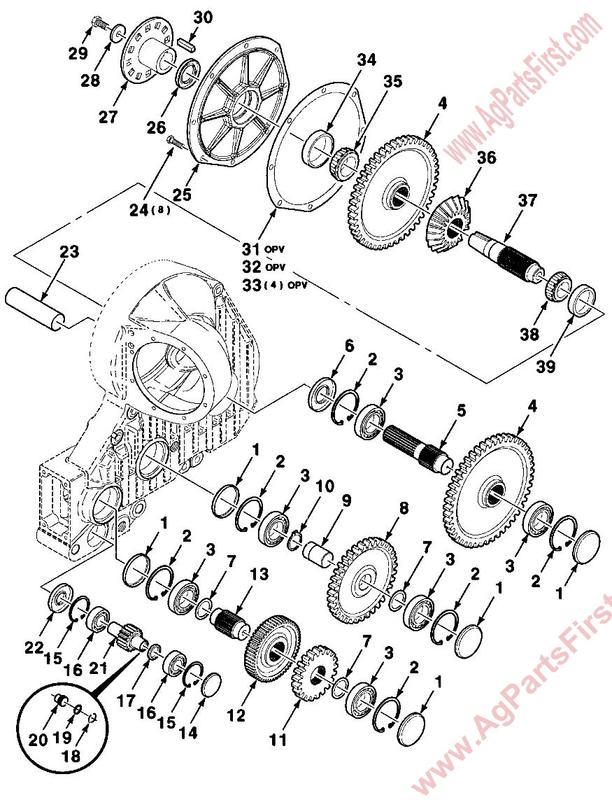

#2 355988X1 Internal Snap Ring

#3 700712383 Bearing

#4 527827 47T Spur Gear

#5 527831 Lower Drive Shaft

#6 744946 Oil Seal

#7 10633HE1 Washer

#8 526506 35T Spur Gear

#9 526509 Center Idler Shaft

#10 352699X1 External Snap Ring

#11 527578 21T Spur Gear

#12 527577 53T Spur Gear

#13 527576 Idler Shaft

#15 208230M1 Snap Ring

#16 17798 Bearing

#17 527824 Spacer

#18 Z17578 Internal Snap Ring

#19 364105X1 O-ring

#20 526989 Plug

#21 526916 18T Gear Spur

#22 N17574 Oil Seal

#23 526748 Dust Cap

#24 N17570 3/8-16 x 1-1/4" Special Bolt

#26 Z17572 Oil Seal

#27 H146364C1 Hub

#28 Z17256 Washer

#30 Z61770 Square Key

#31 526521 Shim .005"

#32 526522 Shim .007"

#33 526523 Shim .020"

#34 208285M1 Bearing Cup

#35 74255820 Bearing Cone

#36 527826 20T Bevel Gear (540 RPM)

#36 527825 27T Bevel Gear (1000 RPM)

#37 527828 Output Shaft

#38 1851800M1 Bearing Cone

#39 70227666 Bearing Cup
